30 Essential Roof Components Clearly Explained with Diagrams

mportant Parts of a Roof: Diagrammed to Understand

Look at the roof over your head, and it’s more than just a cover! We’ll reveal the fascinating roofs and their important roof parts.

Roofs shield us from rain, sun, and snow. But did you know they’re like a puzzle with unique pieces? Let’s start by looking into the attic.

Hidden up, there is the truss, like a frame holding everything together. Then there are the rafters, like long beams that support the roof.

Ever heard of shingles? They’re the roof’s clothes, protecting it from the weather’s tricks. Gutters are like roof helpers, carrying rain away.

And don’t forget the flashing, the roof’s shield against hidden leaks. We’ll find each piece like a detective, finding out how they work as a team.

So, let’s reveal the mysteries that make roofs not just overhead but over-awesome.

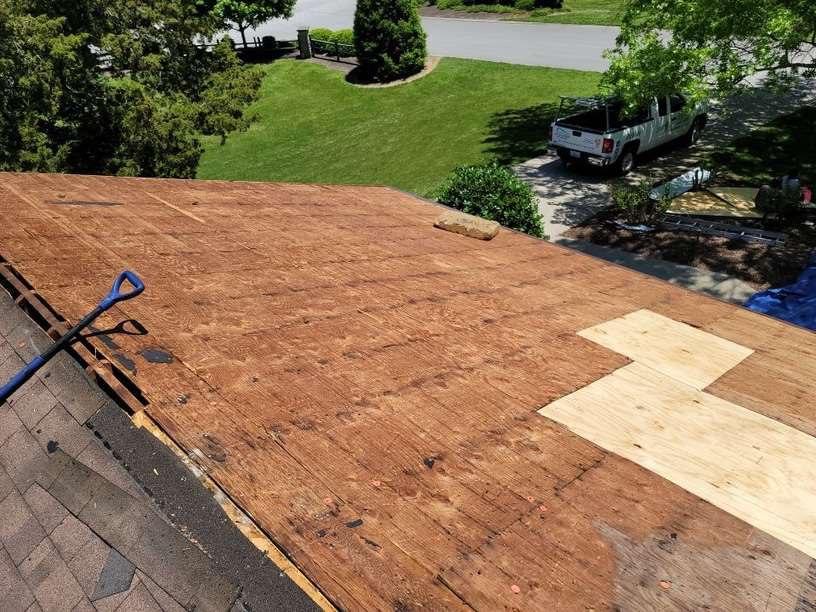

1. Decking for The Roof

Decking for The Roof

The roof’s decking is like the roof repair parts. It’s where everything is on top of the roof parts. Usually, it’s made from plywood or OSB, and it gives a flat surface for the rest of the roof stuff. Think of it as the floor of the roof, keeping everything together. Just like a solid floor holds up a building, the decking holds up the roof covering, making sure everything stays where it should and is safe.

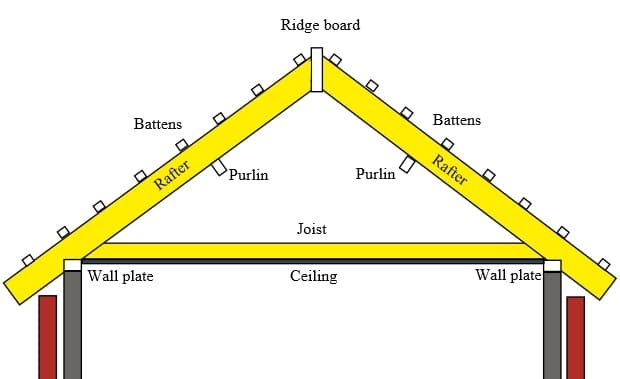

2. Structural Rafters

Structural Rafters

Structural rafters are the roof’s strong bones. They’re slanted beams that go from the top to the edges. These tough beams shape and hold up the roof. Rafters spread out the weight of the roof and snow, making sure it can handle different heavy things and pressures. They’re like the roof’s powerful backbone, giving it the strength to stay up and handle whatever comes its way. So, next time you look up at a roof, remember the hidden heroes, the roof parts working hard to keep everything safe and steady.

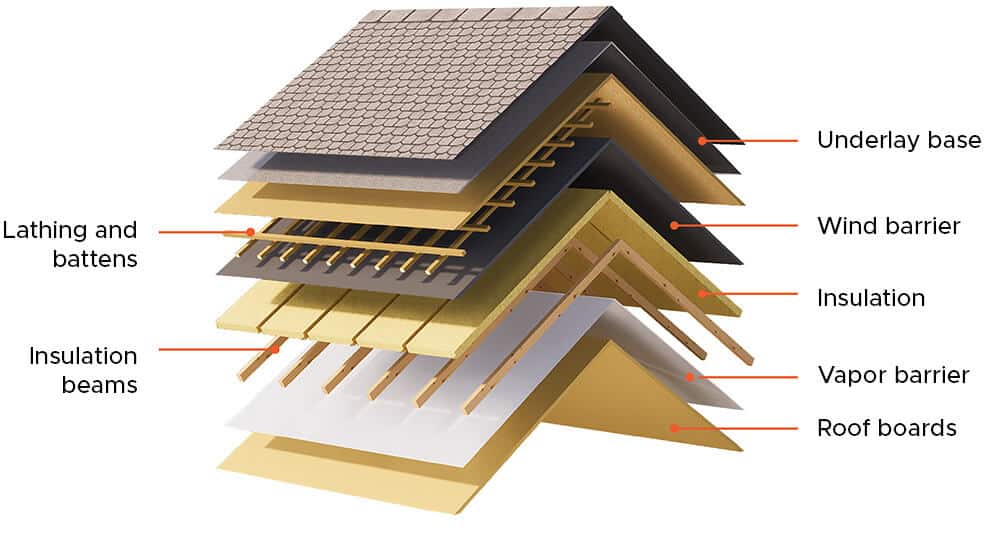

3. Insulating Layer

Insulating Layer

Think about having a cozy blanket for your house that keeps you comfy and saves energy. These Flat roof components go between the roof and the structure of your home. It’s like a temperature checker, making sure your inside stays warm in winter and cool in summer. But that’s not all. These roof parts also help you save money on your energy bills. So, when it’s freezing outside, your house stays nice and warm, and when it’s super hot, it stays pleasantly cool. It’s like magic that makes your home comfy while being nice to your wallet.

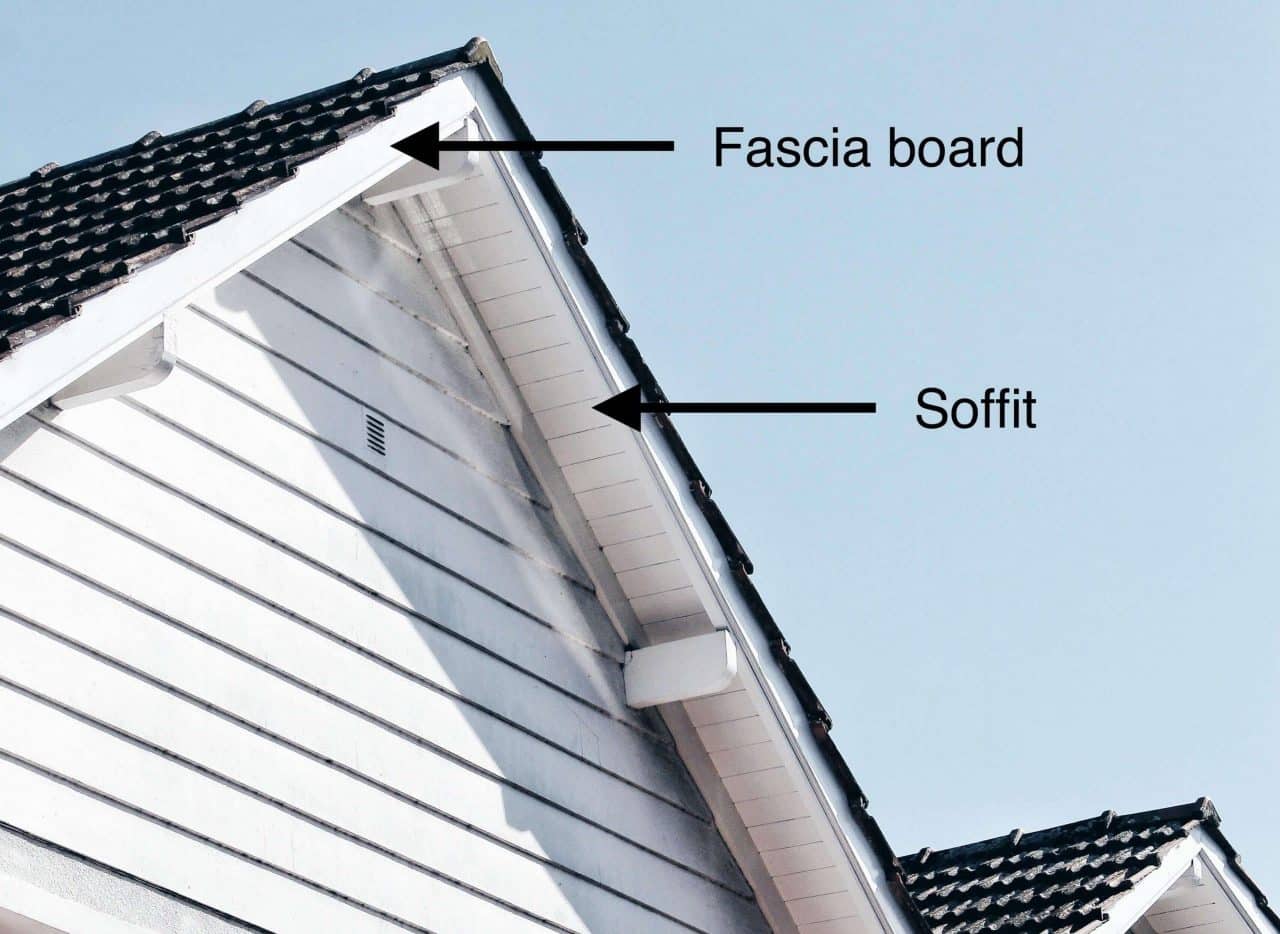

4. Fascia Board

Fascia Board

The fascia board is like a final touch where the roof meets the outer walls. It’s a flatboard running along the bottom edge of the roof. It makes everything look neat and protects the roof’s edges from bad weather. The fascia board keeps the roof safe from rain, wind, and other outdoor stuff. These metal roof parts help the roof last longer and avoid expensive repairs later on. So, it’s not just for looks but also to keep the roof safe and is a necessary part of any well-kept home.

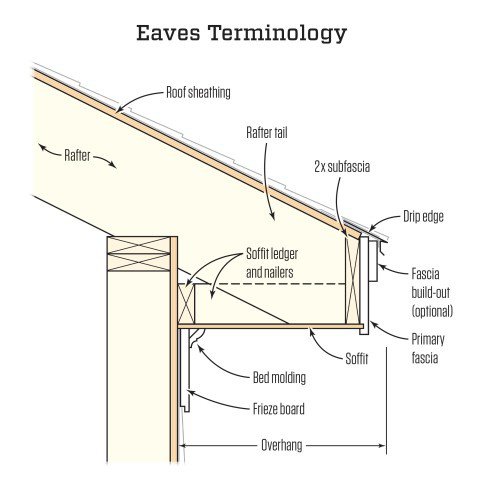

5. Overhanging Eaves

Overhanging Eaves

Eaves are the edges of the roof that stick out over the walls of your house. They do two important jobs: give shade and protect your home from rain. Roofing gutters play a vital role in this process by collecting rainwater and channeling it away from your walls and foundation. These roof parts stop water from getting into your walls, keeping your house dry and tough. Eaves also make your roof look stylish and serve a useful purpose. They create a nice sheltered area around your home, keeping it comfy and safe from the weather. So, next time you look up at your roof, you’ll know how those eaves are working hard to make your house a cozy and secure place to live.

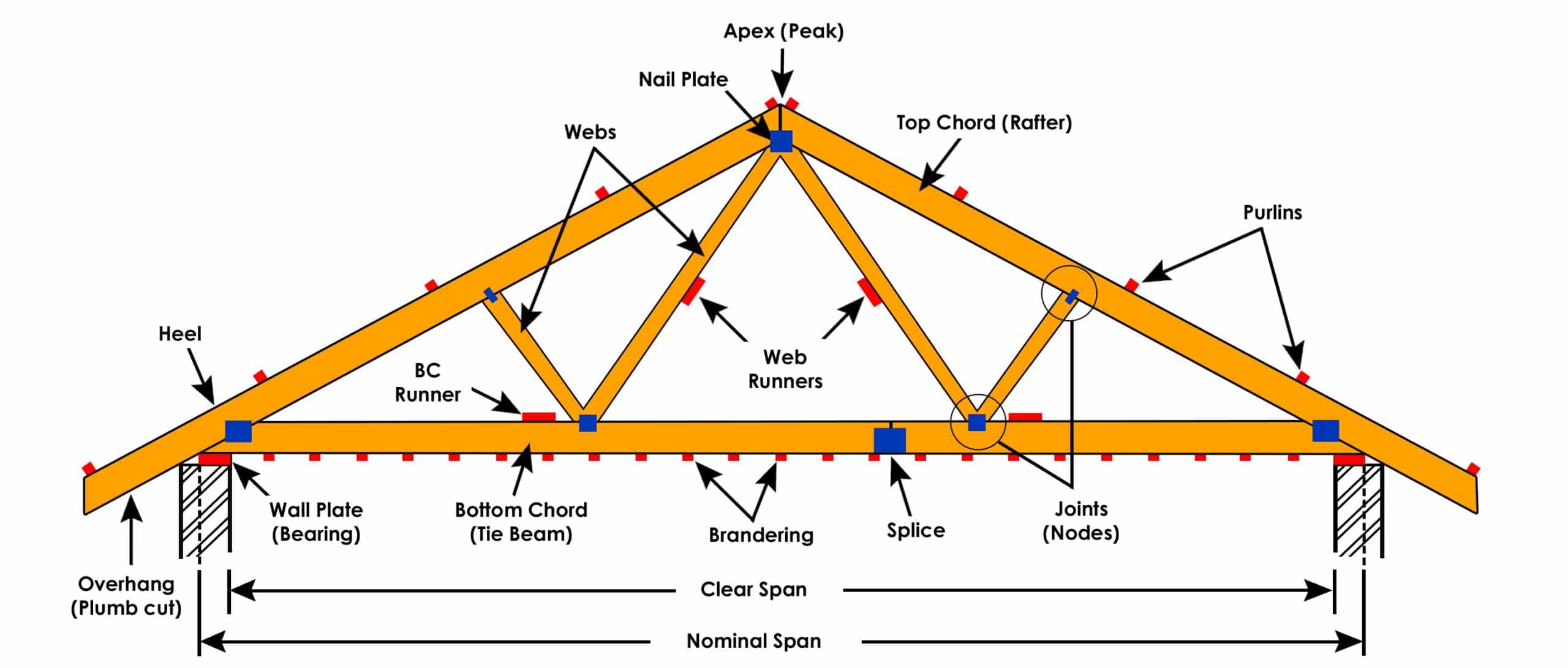

6. Supportive Roof Truss

Supportive Roof Truss

A roof truss is an essential part of any roof. It’s like a fit frame made of wood or metal that holds up the roof. The truss is designed to evenly spread the weight of the roof so that it doesn’t bend or wobble. It’s made up of diagonal and horizontal pieces that connect at joints, forming a sturdy triangle shape. These roof parts are custom-made to match the roof’s design and handle things like snow or wind.

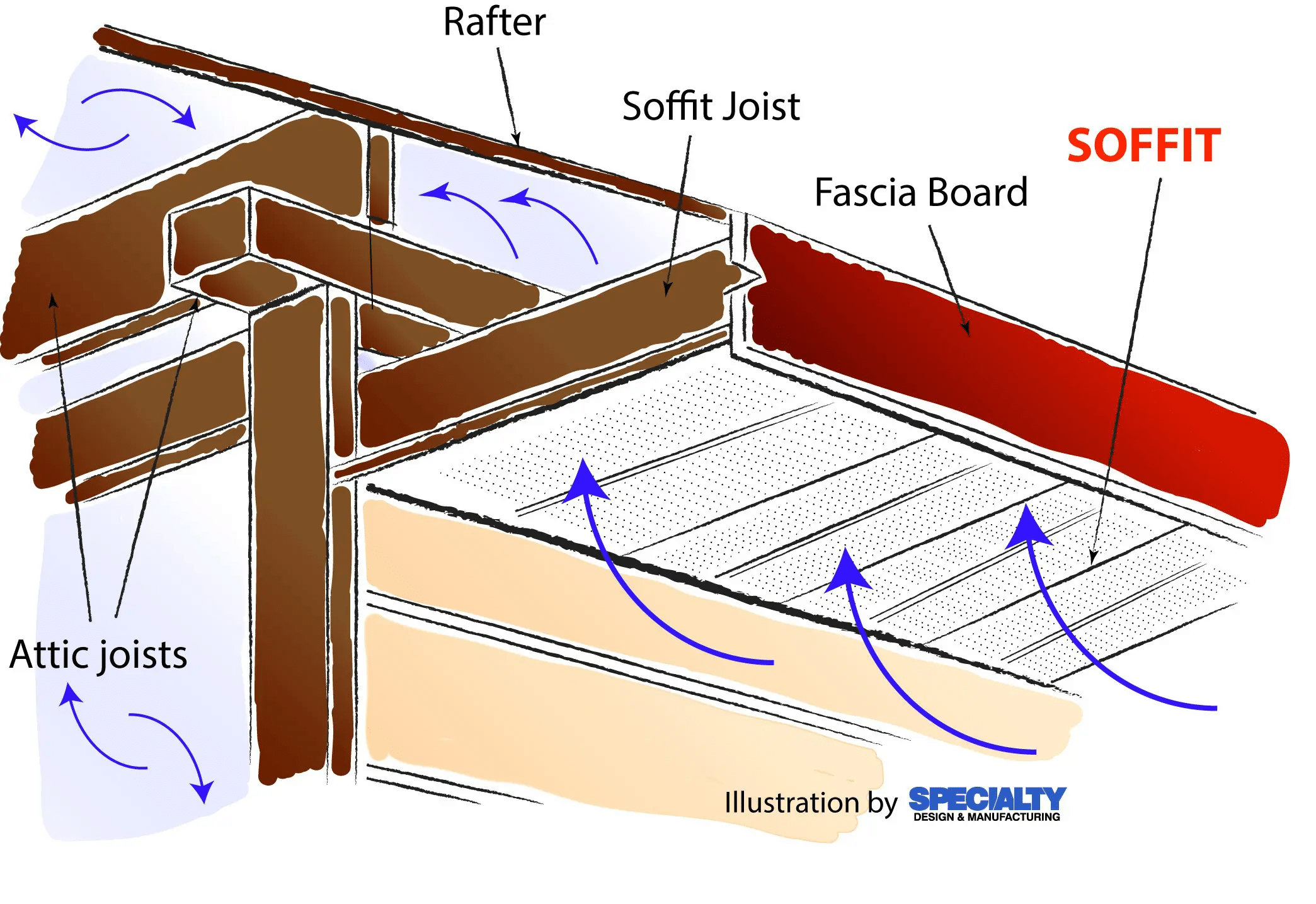

7. Underside Soffits

Underside Soffits.jpg

The underside soffits are like the undersides of the roof that hang out. These roof parts do two important things, protect the edges of the roof and make it look nice. Soffits keep the roof safe from the weather and let the air go through the roof, which stops mold or rot from growing. Some soffits have vents to help with this. Also, soffits make the roof look complete and pretty, especially around the eaves.

8. Vertical Battens

Vertical Battens

Vertical battens are long strips made of wood or metal that go up and down the roof. They are a base for attaching different roofing stuff like tiles or shingles. These Flat roof components leave a space between the roof covering and the roof deck below. It lets moisture escape and stops water from building up and causing harm. These roof parts help the roof last longer by reducing the chance of rot and making the structure harder.

9. Connect Roof Valley

Connect Roof Valley

A roof valley is where two diagonal parts of the roof come together in a V shape. It’s important to connect the roof valley correctly to prevent water from getting in and causing leaks. Roof valleys often collect water, so they are covered with special materials called flashing. These Gutter system parts are usually made of metal or rubber and are used to guide water away from the joint. These roof parts create a fit seal, making sure rainwater flows down the roof without entering the inside.

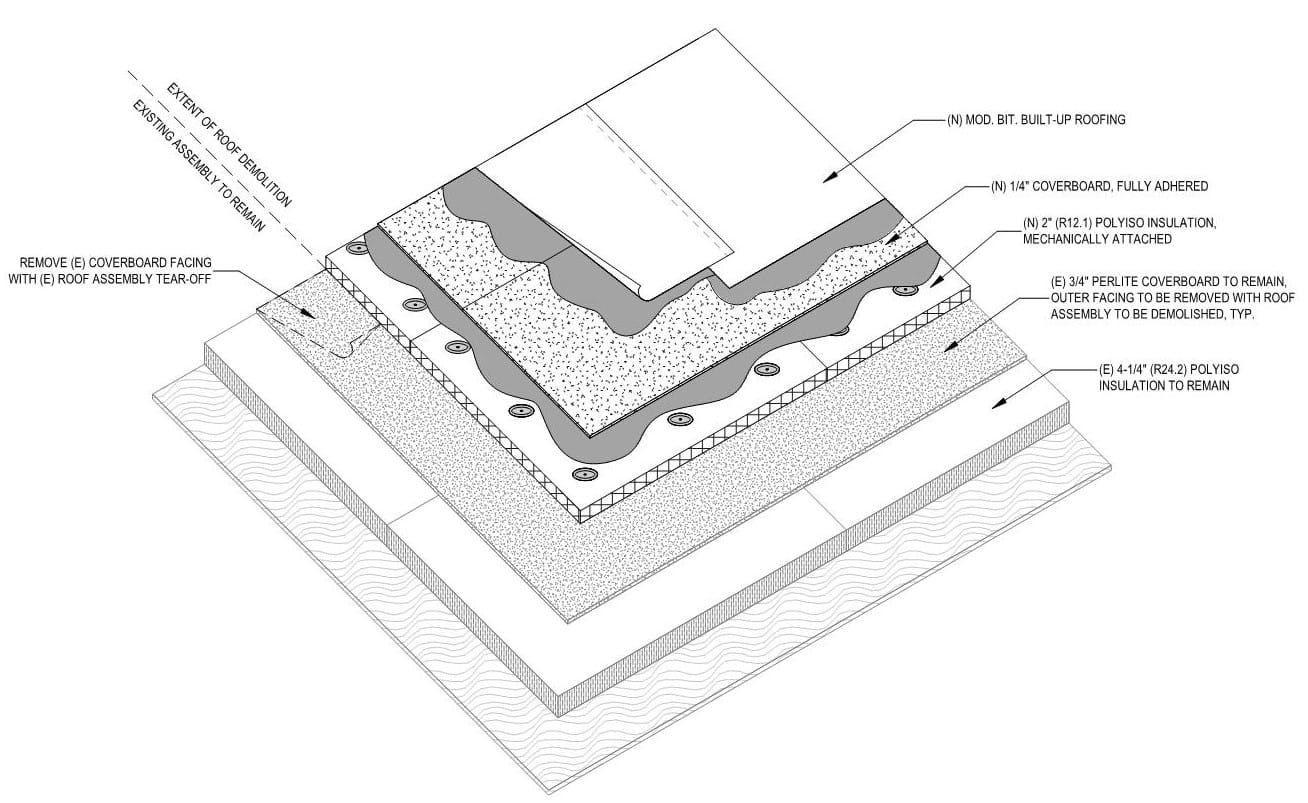

10. Underlying Roof

Underlying Roof

The underlying roof, also known as the bottom layer of the roof, is made of plywood or oriented strand board (OSB). It’s like the foundation of the roof repair parts and keeps everything together. These roof parts are vital for attaching the roof materials and protecting the inside of the building from the outside weather. Making sure the underlying roof is powerful and well-installed is super important because it keeps the whole roof stable and prevents problems like sagging, water getting inside, and damage to the inside of the building. So, installing it properly is a big deal.

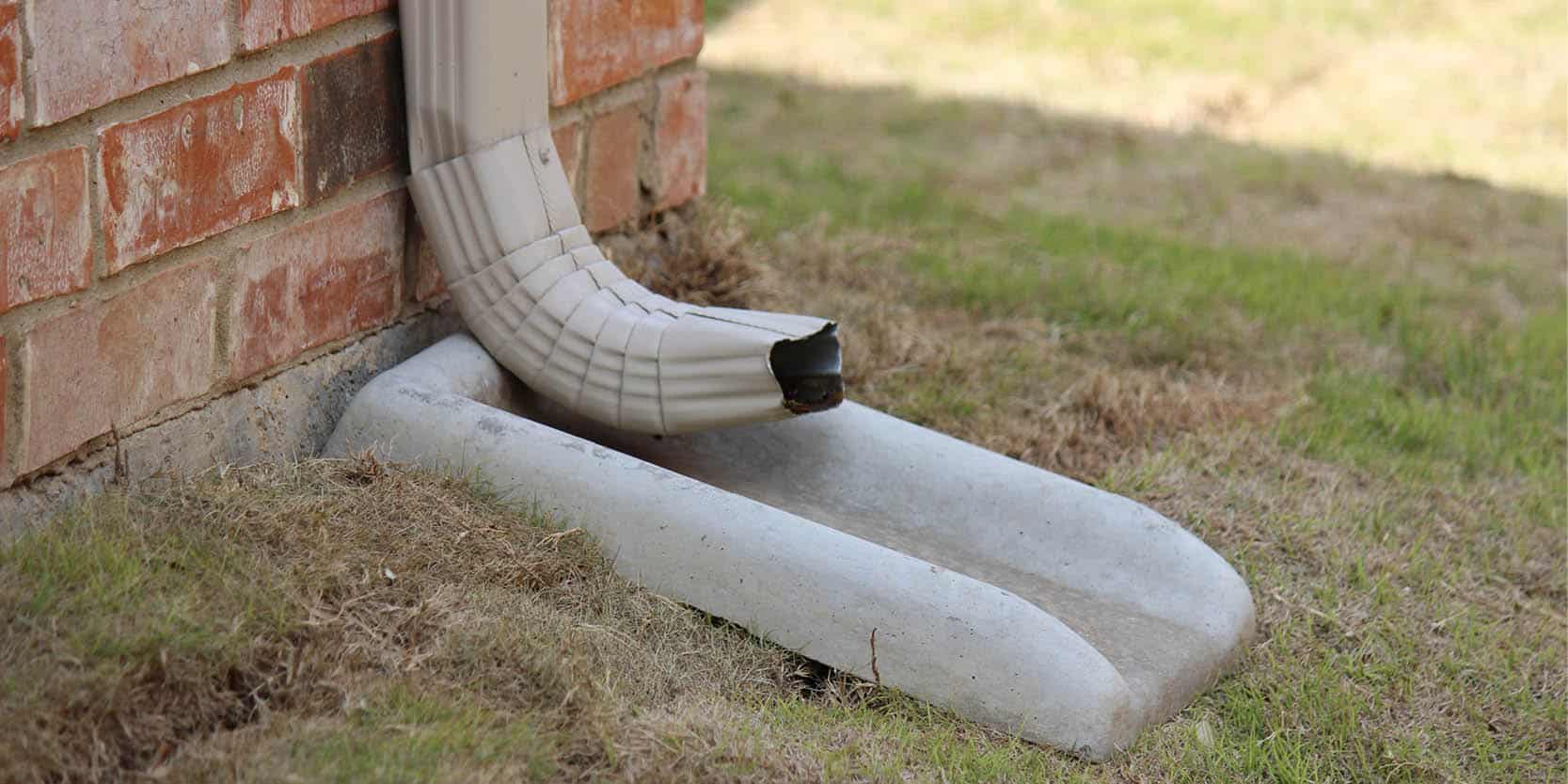

11. Water Diverting Splash Block

Water Diverting Splash Block

A water diverter splash block is a simple but helpful part of a roof drainage system. It sits under the pipes and prevents rainwater from washing away the soil around your home’s base. This roof part moves water away from the building, stopping any harm from water pooling and soil being washed away. It’s usually made from tough materials like concrete or plastic and comes in different shapes and sizes to fit your needs. A well-designed splash block keeps your foundation and landscaping safe by making sure water drains properly.

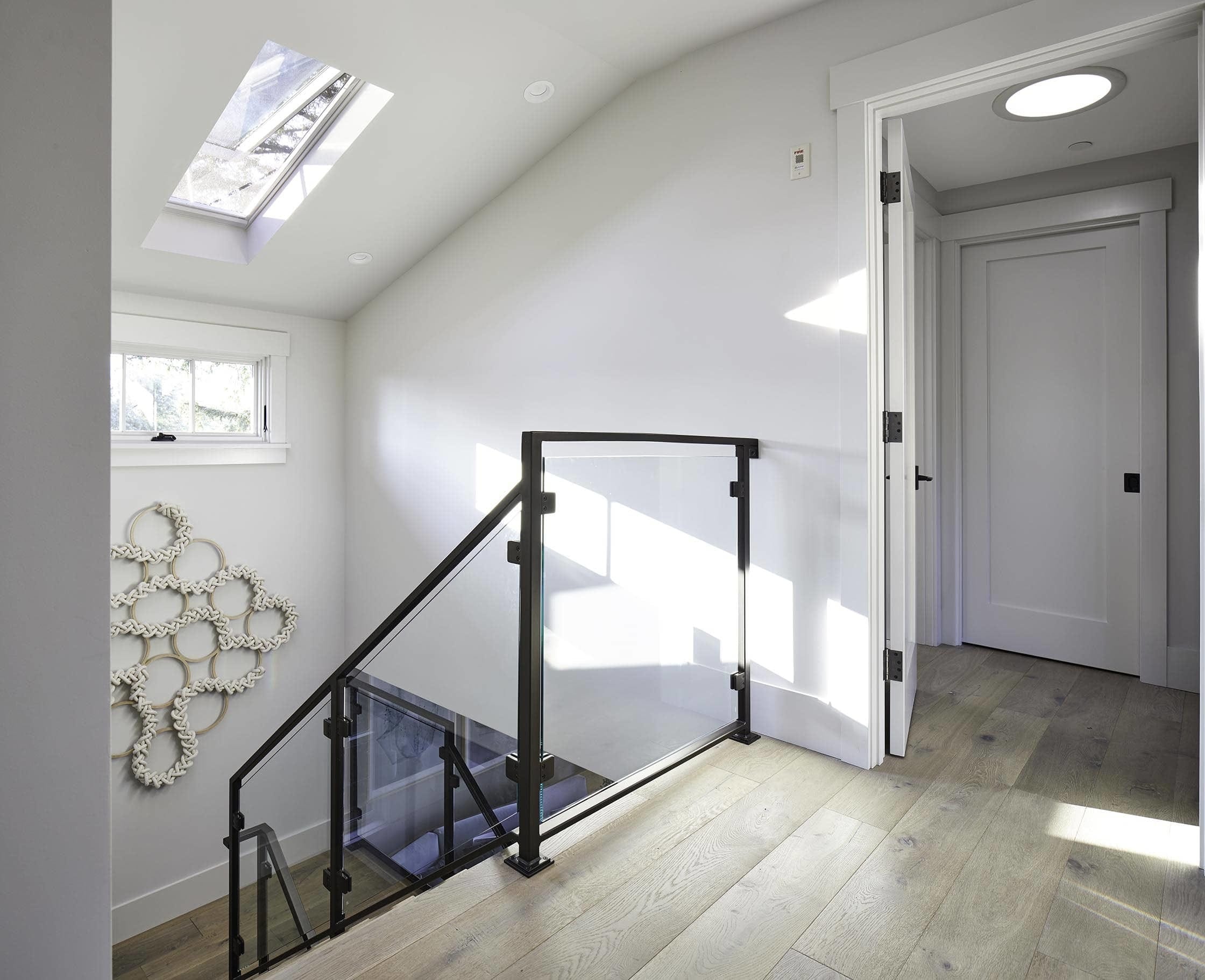

12. Brighten Skylight

Brighten Skylight

A brightened skylight, also known as a roof window, is a feature that brings natural light into your living space. It’s like having a window on the roof that lets sunlight come inside. These roof parts come in multiple styles; some can’t be opened, while others can. They can also have blinds or shades to control the amount of light. Brighten skylights have many benefits. They make a room feel nicer, reduce the need for electric lights during the day, and improve air circulation. However, they must be installed carefully to avoid leaks or problems with the structure.

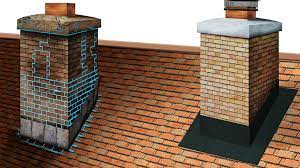

13. Chimney Weatherproofing Flashing

Chimney Weatherproofing Flashing

Chimney weatherproofing flashing is important. It keeps water out where the chimney meets the roof. They use metal sheets, usually made of aluminum or galvanized steel, and put them around the bottom part of the chimney where it meets the roof. These roof parts make a shield that directs water away from this weak spot, keeping leaks and water damage away. Making sure the flashing is installed right is a must to keep the roof and chimney safe. It seals them up tight, so they can handle distinct weather without any water problems.

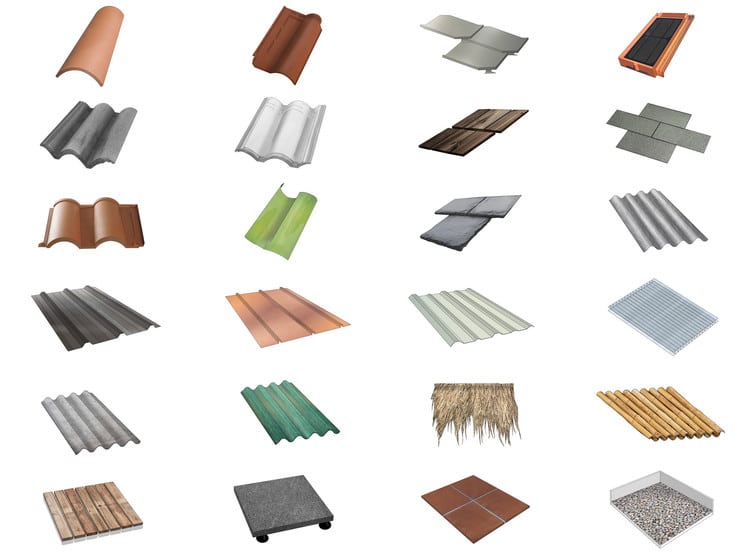

14. Roof Covering Tiles

Roof Covering Tiles

Roof covering tiles, also known as shingles, are the outer layer of a roof. They’re essential for protecting your home from the weather and making it look nice. Shingles are made from materials like asphalt, wood, metal, or slate. You can choose from different shapes and colors to match your house’s style. The main job of these tiles is to get rid of water, snow, and other stuff that might collect on the roof. These roof parts help keep your roof strong and lasting. Remember to check your roof regularly and replace any broken tiles to keep it working well and looking good.

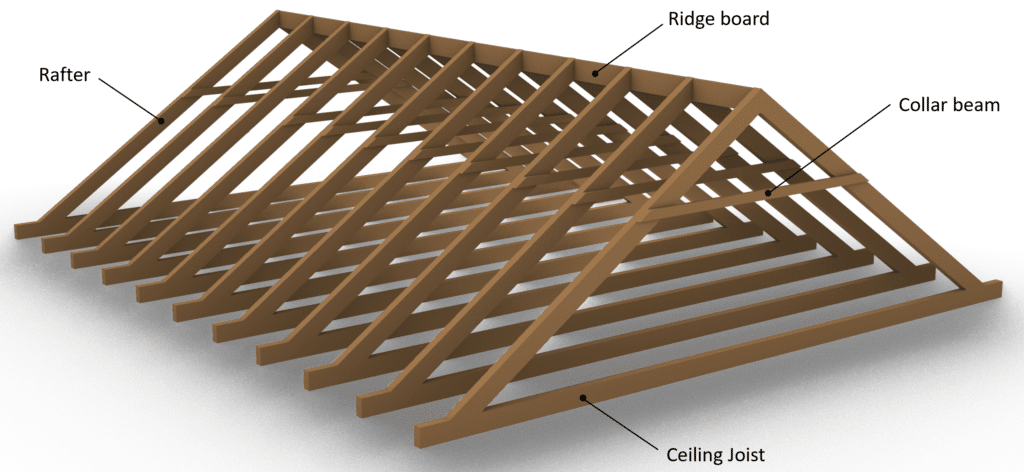

15. Underprop Collar Beams

Underprop Collar Beams

Collar beams, also known as collar ties, are flat supports that connect the diagonal parts of a roof. These metal roof parts, along with Roof Brackets, are placed lower than the main roof beam and help keep the roof from spreading or sagging because of its weight. Collar beams make the roof powerful, especially if the roof is steep. They are usually made of wood and put in a way that spreads the weight evenly, making the roof less likely to get damaged. When collar beams are installed correctly, they make sure your roof stays in good shape and lasts longer, making your home safer too.

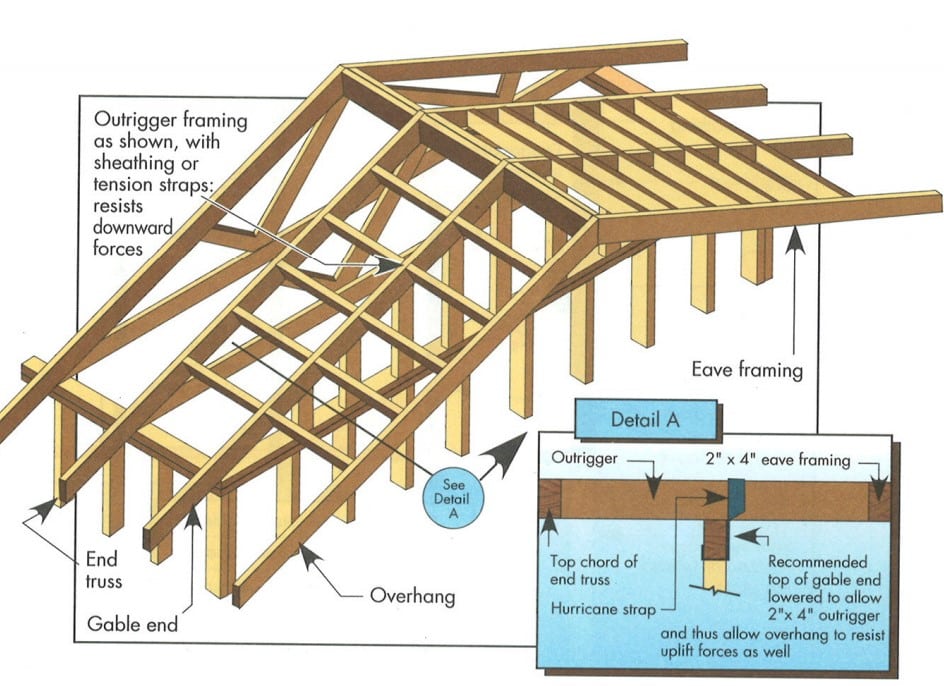

16. Outward Extending Lookouts

Outward Extending Lookouts

Roof lookouts are important parts that stick out from the walls. They help protect the roof by stopping water from going into the walls. These roof parts are made to keep rain and stuff away so the roof and the building stay fit. Because they are carefully placed, these roof lookouts make the roof even tougher. They keep the walls and structure safe, making the whole building last longer and be more sturdy. So, they’re really important for a tough and reliable roof.

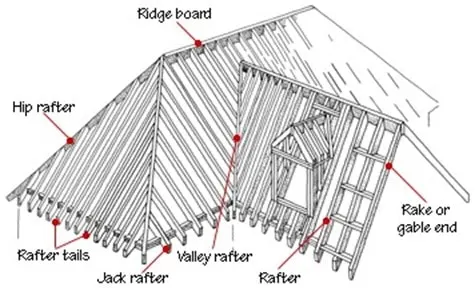

17. Sloping Rakes

Sloping Rakes

Sloping rakes are the diagonal edges of a roof that go down from the top to the lower edges. They are super important because they guide rainwater and melted snow away from the roof so water doesn’t stay and make leaks. The Gutter system parts also help to get rid of dirt and leaves, which keeps the roof cleaner and less likely to get damaged. Sloping rakes are essential for making sure water drains well from the roof and helps the roof last a long time. So, these roof parts play a really important part in protecting the roof and the whole house from water problems and possible damage.

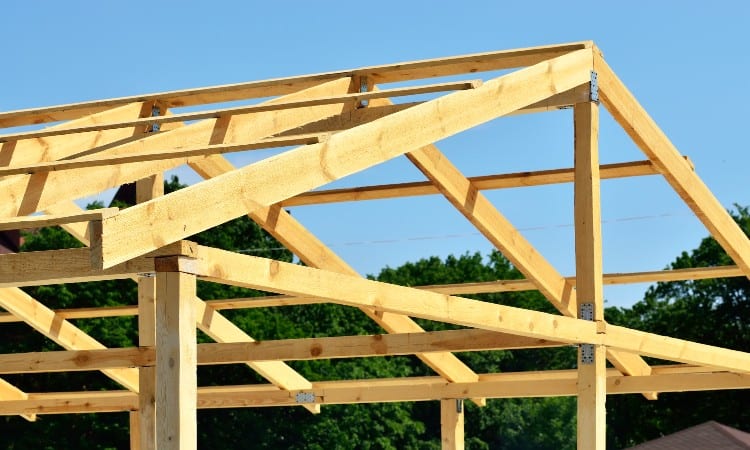

18. Central Ridge Board

Central Ridge Board

The central ridge board is a powerful horizontal beam placed at the highest point where the two sides of the roof meet. It’s like the roof’s backbone, giving it support and stability. These roof parts help the roof stay in the right shape and not collapse. The ridge board also spreads the roof’s weight evenly so it doesn’t sink or fall. It’s like the main spine that makes the whole roof tough and safe.

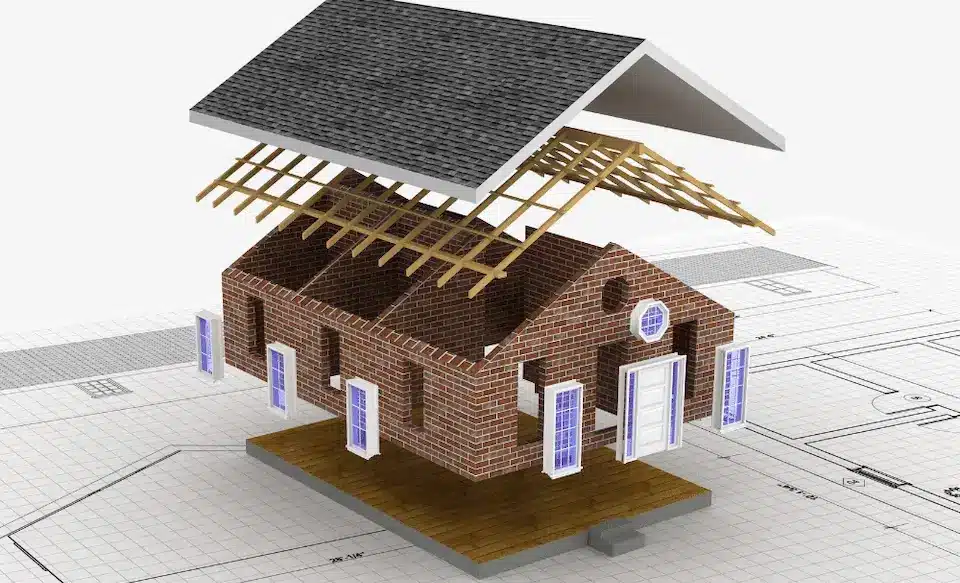

19. Strong, Solid Decking

Strong, Solid Decking

The base layer of the roof is called strong solid decking. It’s like the tough foundation of a house. This decking is usually made of plywood or oriented strand board (OSB). It gives a fit surface to attach to the other roof materials. The quality and durability of the decking are important because they affect how rugged the whole roof will be. A strong decking makes sure the roof can handle things like wind, snow, and hail. These roof parts help the roof protect the building better.

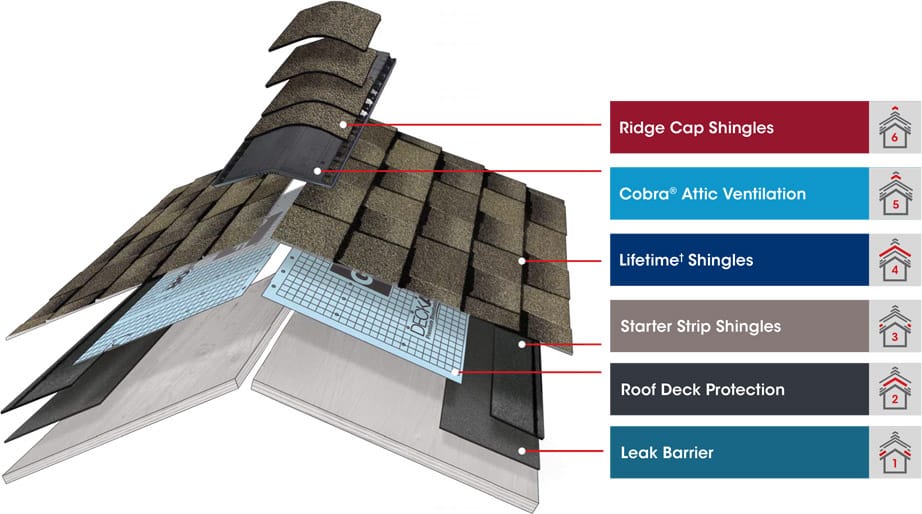

20. Protective Shingle Layer

Protective Shingle Layer

The top layer of your roof is the protective shingle layer. It’s the part you see from the outside. Roof shingle accessories can be made of various materials like asphalt, wood, metal, or clay. They all look rare and last for varying amounts of time. When the shingles are put on the roof, they overlap, making a tough barrier that keeps out rain, snow, and harmful sun rays. These metal roof parts make the roof better at handling bad weather and makes the outside of your building look nice too. To keep your roof in good shape and looking good, it’s important to take care of this shingle layer regularly.

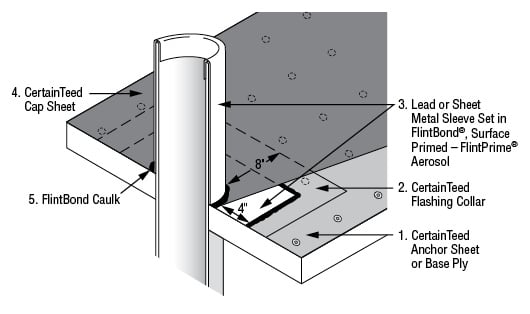

21. Airflow Pipe Flashing

Airflow Pipe Flashing

Roof airflow pipe flashing is super important for a fit roof. It seals tightly around pipes that come through the roof, like plumbing vents and exhaust pipes. This roof part keeps water out of your home and stops any damage. Usually, it’s made of tough stuff like rubber or metal, so it lasts a long time and can handle different weather. Making sure it’s put in the right way is important to stop leaks and keep the roof powerful. With a good roof and well-installed pipe flashing, your home will stay safe and dry for a long, long time.

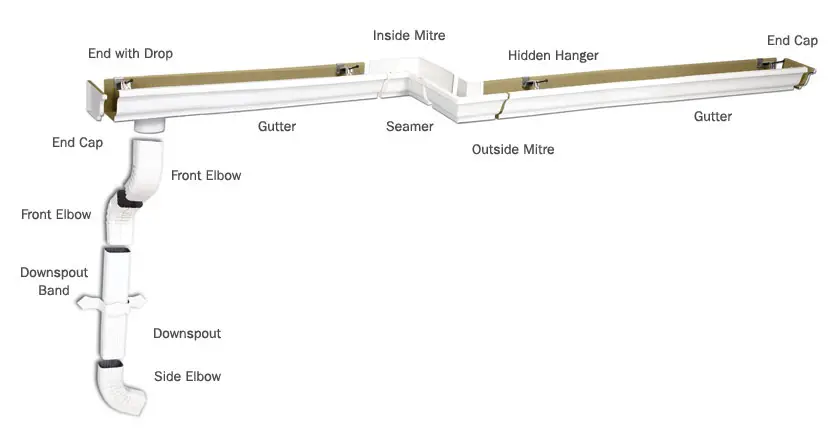

22. Vertical Drainage Downspout

Vertical Drainage Downspout

A vertical drainage downspout is a straight pipe that goes down the side of a building. It helps move rainwater from the roof’s gutters to the ground or a drainage system. The goal is to stop water from piling up on the roof, which could cause leaks or damage. To keep it working well, remember to clear out any leaves or stuff that might block the downspout. If roof parts get clogged, water can’t flow properly, and that could lead to problems when it rains heavily. So, keep it clean to make sure water flows right, and your roof repair parts stay safe. Taking care of your vertical drainage downspout is a simple way to protect your building from water damage. Just a little maintenance keeps your roof and home secure from rain troubles.

23. Ground-Level Splash Block

Ground-Level Splash Block

A ground-level splash block is a simple but important part of a roof’s drainage system. It’s placed at the end of a downspout to move water away from the building’s foundation. These Roof shingle accessories are super useful because it stops water from gathering around the base of the building. By keeping water away from the foundation, splash blocks help prevent erosion and foundation damage. They act like a shield, guiding rainwater or runoff to a safer spot, far from the weak parts of the building. These roof parts help the building stay strong and last longer. Splash blocks are easy to use and affordable. They’re a smart investment for anyone who owns a building.

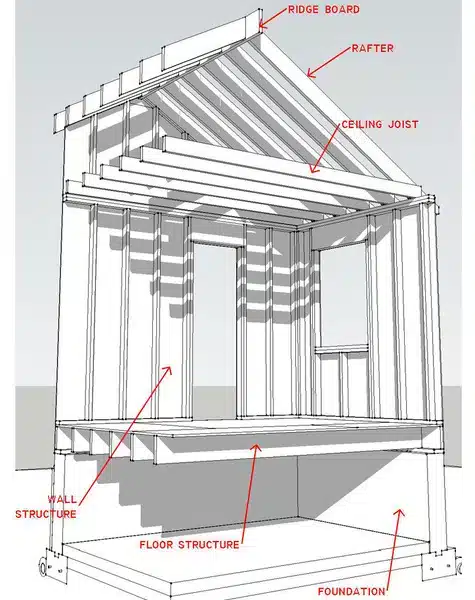

24. Roof Wall Structure

Roof Wall Structure

The roof wall structure is where the roof and walls of a building come together. It’s important to connect them properly so water doesn’t leak in, and the building stays rugged. To keep this joint waterproof, we use a material called flashing. It’s usually made of metal and acts like a barrier, keeping water away from weak spots. This way, the building stays safe and dry, and there’s no damage from moisture. So, by installing roof parts correctly, we make sure the building is well-protected and stays in good shape.

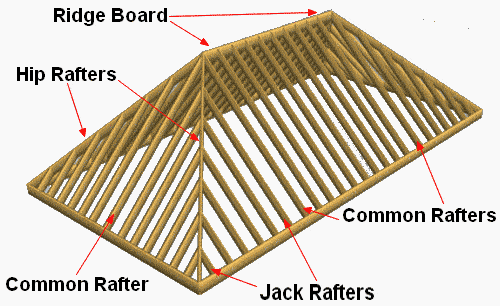

25. Angular Hip Area

Angular Hip Area

The angular hip area is where two slanting roof parts meet, forming a corner. This part of the roof can be tricky to keep watertight and stable. To make sure the roof lasts long and doesn’t leak, special shingles or metal sheets are used to cover this area tightly. It’s important to install and seal them correctly to stop water from getting in and keep the roof tough. By Gutter system parts, you can protect your home and have a roof that stays sturdy and leak-free for a long time.

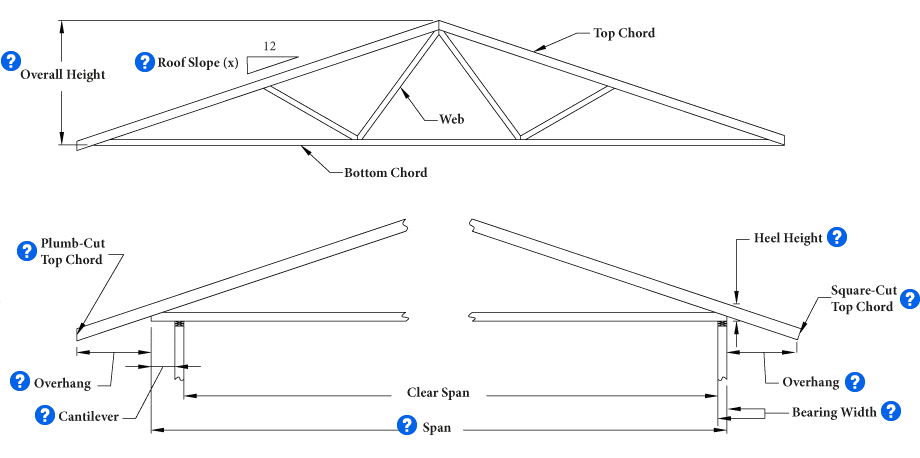

26. Vertical Plumb Cut

Vertical Plumb Cut

The vertical plumb cut is an important part of roof framing. It’s an angled cut at the end of a rafter, making sure it fits perfectly against the ridge board or another rafter. This roof parts cut keeps the roof fit and stable, stopping any gaps that might cause leaks or other problems. When the rafters fit together tightly, the roof becomes harder and more reliable. Making sure the rafters connect tightly is crucial for the whole roof’s stability. So, the vertical plumb cut is essential in keeping the roof powerful and secure so that it can protect the building underneath for a long time.

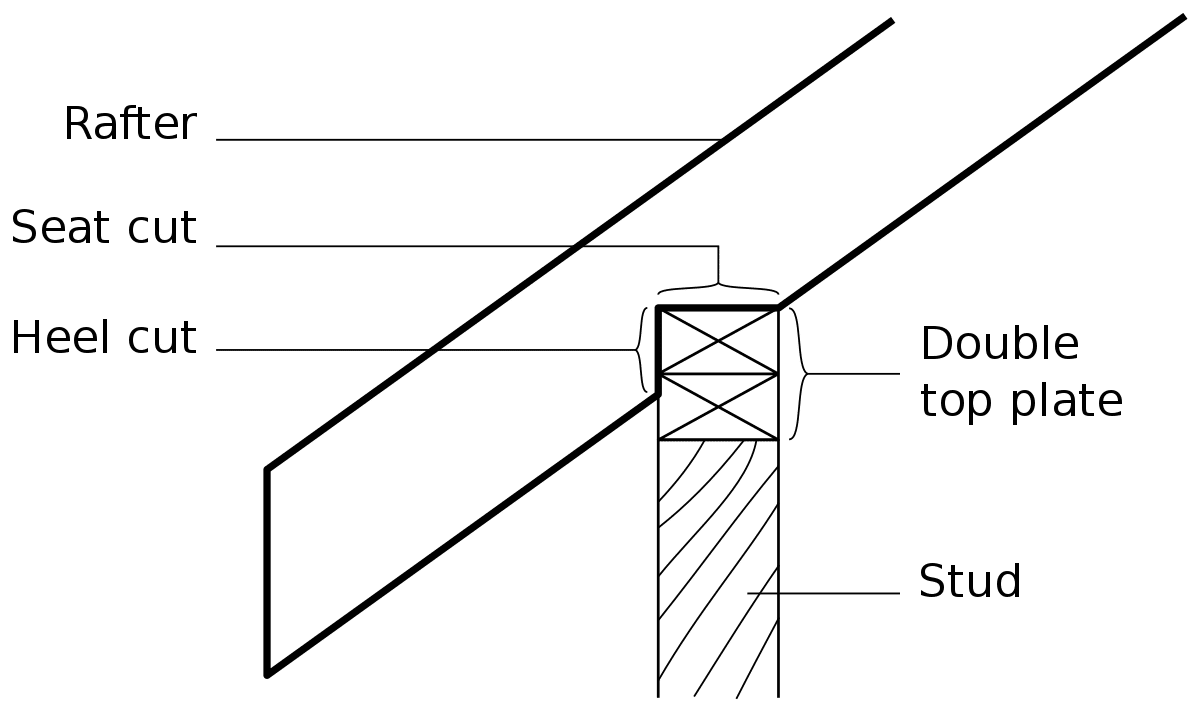

27. Bird’s Mouth Rafter Joint

Bird's Mouth Rafter Joint

The bird’s mouth rafter joint is an important part of a roof. It’s a special cut in the bottom edge of the rafter, so it fits nicely on the top part of the wall. These Flat roof components cut helps the weight of the roof spread out evenly so it stays steady. The roof parts do a big job of moving the roof’s weight onto the walls so the roof doesn’t bend or shake. It’s like the joint holds hands with the walls to keep everything safe and fit. Without Roofing Nails, the roof could get weak and not safe. So, the bird’s mouth rafter joint is super important to keep the roof tough and your home safe and sound.

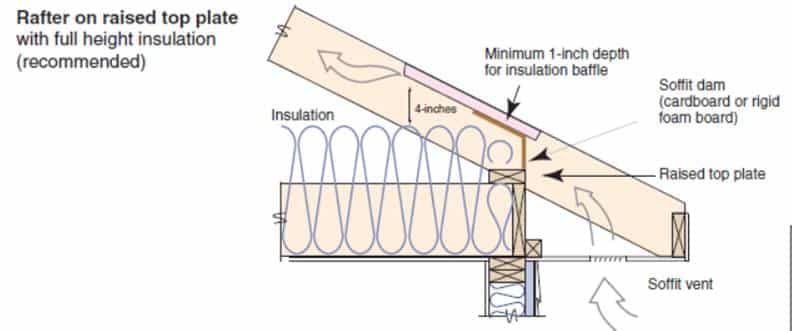

28. Horizontal Top Plate

Horizontal Top Plate

The top plate of a wall is like its upper foundation. Its main job is to attach the roof beams securely to the walls. This makes the roof powerful and stable. When the roof is connected to the walls, the weight gets spread out evenly. These roof parts help the roof handle different weights and handle distinct weather. So, the top plate is super important for the strength and stability of the roof and walls.

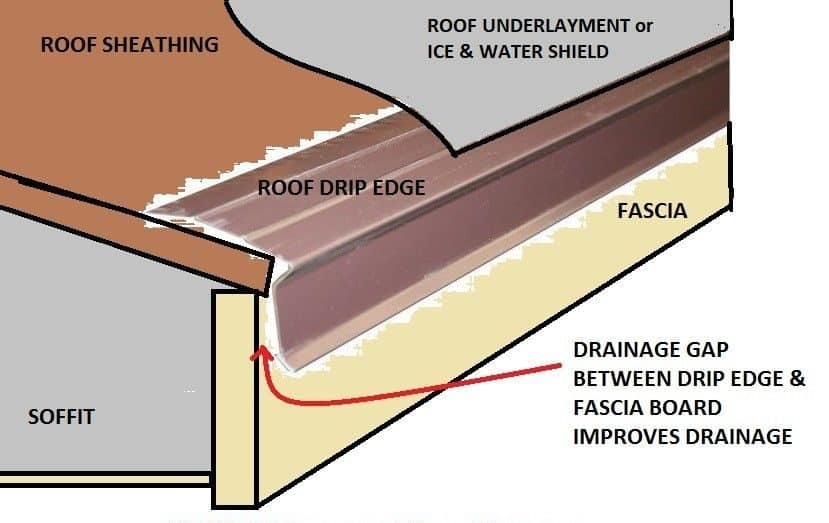

29. Drip Edge Guard

Drip Edge Guard

The drip edge guard is a small but essential thing that goes on the edges of a roof, especially at the bottom and the triangular parts. These Roof shingle accessories stop water from going under the roof and causing damage to the roof’s base. By guiding water away from the edges of the roof, it keeps the roof safe from rot, mold, and other problems. These roof parts help the roof last longer.

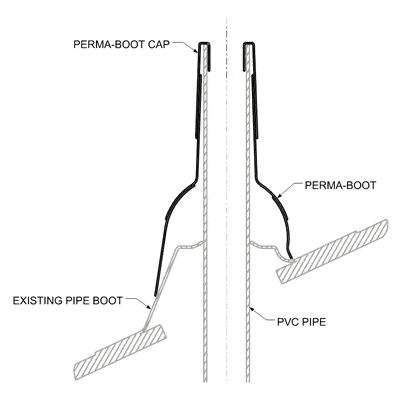

30. Pipe Access Boot

Pipe Access Boot

Pipe access boots, also known as pipe flashing, are protective covers that go around pipes and vents on the roof. They keep water out and protect the roof from leaks. These roof parts are important because they keep the roof fit and stop leaks in weak areas. They come in multiple sizes and materials to fit different pipes and keep everything safe from bad weather.


In short, understanding the important parts of a roof can help us appreciate the vital role it plays in keeping our homes safe and comfortable.

The roof’s key components, like the shingles, underlayment, flashing, and ventilation, all work together like a team to shield us from weather, rain, and heat.

Just like a puzzle, each piece has its place and function. Knowing about these parts can also help us make informed decisions when it’s time for repairs or maintenance.

So, next time you look up at your roof, remember the many essential parts that work silently to keep you dry, cozy, and protected.
